START NEW OR STRENGTHEN SINGLE PART PRODUCTION?

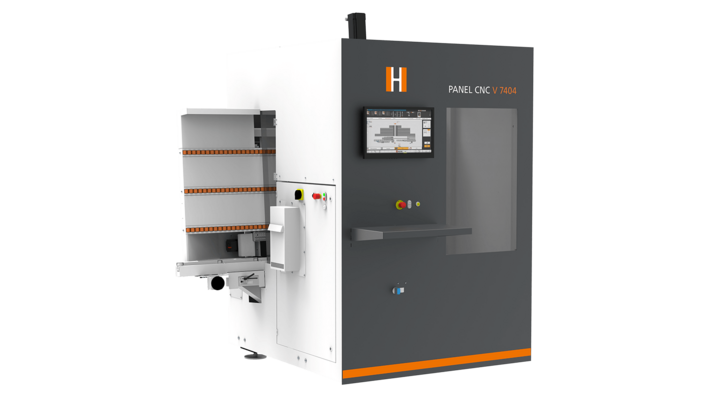

The powerful vertical CNC machine from HOLZ-HER, designed for small workshops as well as highly precise single-part production in larger companies.
EVERY PART A DIRECT HIT
Produce perfectly square, dimensionally accurate components with precise machining on all four sides.
LESS HANDLING, MORE SAFETY
No errors due to reclamping – simply clamp the component & finish machining.
GENTLY CLAMPED, POWERFULLY MACHINED
Gentle on materials and ergonomic – perfect hold without pressure marks or exclusion zones thanks to vacuum clamp.
COMPLETE MACHINING IN ONE PASS
Drilling, milling, formatting, and cutouts – productivity that pays off immediately.
THE COMPLETE PACKAGE – FULLY EQUIPPED
More CNC from day one: The VC 7404 was developed for small workshops looking to enter CNC production – without sacrificing important functions. Drilling head, tool changer with aggregate positions, and workpiece inspection are already included as standard.
Made in Austria.
Engineered in Germany.
A full-featured CNC solution for professional entry – compact, powerful, and economical.
- Fully equipped as standard:
19-spindle drilling head, 6-position tool changer with 2 aggregate positions, and laser length measurement. - Compact footprint:
Full-featured CNC machining center on less than 5 m². - Large machining area:
Up to 2,500 mm machining length. - Reliable investment:
10-year warranty on the covered guide rails.
More than just a machine. With HOLZ-HER you choose manufacturer expertise throughout the entire lifecycle of your CNC. From the initial consultation through commissioning to maintenance, service hotline, and remote support, you benefit from a strong network and direct support from our CNC experts.
TECHNICAL DATA AT A GLANCE
- Machining dimensions
- X: 200 mm – endless
- Y: 70 – 990 mm
- Z: 8 – 70 mm
- Powerful milling spindle
- 7.5 kW
- up to 24,000 rpm - speed controlled
- HSK-F 63, ceramic ball bearings
- XL drilling head
- 19 spindles (13V 6H)
- up to 6250 rpm - speed controlled
- individually selectable
- Flexible tool changer
- 6-position linear changer
- two aggregate positions incl.
- covered
- Highlights of the standard equipment
- 4-sided formatting
- Patented vacuum clamping system
- Measurement & program adjustment in X
PERFECT PRODUCTION FLOW.
Faster from design to finished part – without annoying intermediate steps.
- Standardized interfaces to HOPS
ensure smooth data import – no detours, no reworking, just start - Intuitive HOPS entry-level software for single components
User-friendly, clearly structured, and easy to learn – perfect for fast results from the very first part - Flexible programming – at the machine or in the office
Thanks to the network-enabled floating license, you work where it best fits your workflow – maximum freedom, maximum efficiency
INCREASE YOUR PRODUCTION POTENTIAL EVEN FURTHER
Our expansion options for PANEL CNC 7404
Kitchen countertops
Connector millings, cutouts, and notches are of course integrated as standard – manufactured precisely and within a few minutes.
