BUILT FOR PERFORMANCE TODAY. READY FOR GROWTH TOMORROW.
The HOLZ-HER Panel Center Nesting line is designed to deliver premium CNC performance to shops of all sizes, with the freedom to expand automation as your production demands grow.
Highlights at a glance:
- Fully enclosed gantry, powered by a dual-motor system
- Industrial-grade 12kW HSK Spindle
- Powder-coated industrial steel chassis for long-term durability
- High-precision, absolute encoder drives for perfect positioning
- Open software docking for easy programming
- Matrix vacuum table with precision zoning, software-controlled solenoids
- Engineered for seamless automation upgrades: offload conveyors, lifting tables, Power Label systems
Automate when you’re ready — not when the machine forces you.
Includes one free year of Mozaik Software
WEINIG HOLZ-HER Canada has partnered with Mozaik to make the Panel Center N 1228 a complete, ready-to-run solution for shops of any size. For a limited time, your purchase of the router comes with the first year of Mozaik Software at no cost.
OUR PANEL CENTER MODELS. MADE FOR EVERY TYPE OF AUTOMATION.
Panel Center N 1228 Classic
Fully equipped core machine
- Compact footprint
- Minimum initial investment
- Manual loading — manual offload
- Integrated pusher
- Powerful PC with open software docking
- Ready for future automation
Board Size
2800 × 1240 mm
Spindle
12 kW / 24.000 rpm
Tool Changer
16-position rotary
Drill Block
9 vertical spindles
Vacuum Zones
Programmable
Vaccum pump
250m3/h
Software
open CAM
Panel Center N 1228 Push
Integrated pusher
- Compact to medium footprint
- Mid-range investment
- Integrated pusher
- Motorised offloading conveyor
- Semi-automatic offloading
- Powerful PC with open software
- Ideal for growing businesses
Board Size
2800 × 1240 mm
Spindle
12 kW / 24.000 rpm
Tool Changer
16-position rotary
Drill Block
9 vertical spindles
Vacuum Zones
Programmable
Vaccum pump
250m3/h
Software
open CAM
Panel Center N 1228 Lift
Fully automatic, high-output solution
- Complete automation package
- Labelling before machining
- Automated job list
- One-operator supervision
- Full safety zone protection
- Powerful PC with open software
- For High-volume production
Board Size
2800 × 1240 mm
Spindle
12 kW / 24.000 rpm
Tool Changer
16-position rotary
Drill Block
9 vertical spindles
Vacuum Zones
Programmable
Vaccum pump
250m3/h
Software
open CAM
TECHNICAL SPECIFICATIONS HOLZ-HER PANEL CENTER NESTING LINE
- Panel Center
- N 1228
- Board Size
- 2800 x 1240
- Spindle
- 12 kW / 24.000 rpm
- Tool Changer
- 16-position rotary
- Drill Block
- 9 vertical spindles
- Vacuum Zones
- Programmable
- Vacuum pump
- 250m3/h
- Software
- open CAM
- Automation
- Push / Lift
HIGHLIGHTS OF THE HOLZ-HER PANEL CENTER N 1228
HIGHLIGHT

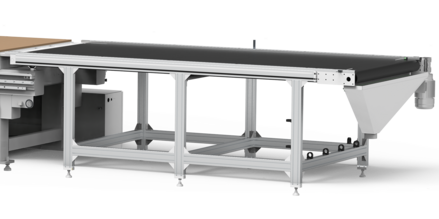

Outfeed Conveyor Belt
An integrated motorized outfeed conveyor smoothly removes finished parts from the working area, reducing manual handling and increasing productivity. The conveyor is designed for scratch-free, damage-free part transport, ready for downstream operations or immediate packing.
HIGHLIGHT
Lifting Table (Automatic Models)
A heavy-duty scissor-lift table automatically loads raw boards onto the machine, perfectly synchronized with the Power Label system. It minimizes operator strain and speeds up production cycles, especially in high-throughput environments.
HIGHLIGHT
Power Label System (Automatic Models)
Prints and applies labels to panels before machining, ensuring parts can be clearly identified during assembly. The system is seamlessly integrated with the nesting software , boosting accuracy and eliminating sorting errors.
HIGHLIGHT
16-Position Rotary Tool Changer
Mounted directly on the beam, this high-speed carousel changer reduces tool change time dramatically compared to linear changers. ISO or HSK tool holders are supported, giving you industrial-grade flexibility for different cutting, grooving, and drilling operations.
HIGHLIGHT
9-Spindle Drilling Head
Equipped with 9 vertical spindles (5 in X, 4 in Y), this drill block makes cabinet and shelf drilling fast, accurate, and highly efficient. Controlled directly through the software interface, it can handle standard line boring, hinge holes, and more.
HIGHLIGHT
Vacuum Matrix Table and high performance pump
A precision-milled vacuum matrix table with multiple programmable zones provides secure clamping for small and large workpieces alike. The powerful rotary vane vacuum pump ensures constant, reliable hold-down force — even with porous materials — to maintain cutting quality and repeatable accuracy.
Seamless Office-to-Machine Nesting with Top-tier CAD/CAM Software
Design in the office. Produce on the floor. Our HOLZ‑HER Panel Center N seamlessly accepts nested programs created with industryleading software - enabling streamlined workflows, accuracy, and profitability:
Cabinet Vision - Computed-aided manufacturing
Complete cabinet engineering solution: design cabinets, closets, drawers, doors, stretchers—all in one environment
Modular platform: includes xOptimizer for material-saving layouts, Machining for automated CNC outputs, and xRendering for photorealistic visuals.
- Design & Nest in Cabinet Vision using CAD, rendering, costing & optimization modules.
- Export G-code or native machine files directly to the Panel Center via OSAI’s open docking.
- Verify & Simulate 3D paths on-screen to catch errors and predict production time before machining.
- Produce high-precision parts with unmatched repeatability in a compact footprint.
- Scale smoothly—add conveyors, lifting tables, or Power Label to reduce manual work
Learn more about Cabinet Vision
Mozaik Manufacturing / CNC / Enterprise
All-in-one design-to-production workflow: Combine cabinet and furniture design, nesting optimization, and G‑code generation in a single platform
Quick launch & local support: Start in days, not weeks, with expert training and flexible subscription models in Canada
- Advanced CNC capabilities: True-shape nesting, flipside machining, automatic hardware boring, dovetail drawers, and G‑code with free post-processors
- Scalable options: Upgrade as needed—for job scheduling and multi-machine control
- Powerful nesting & optimization tools: Reduce material waste and cut costs
- Integrated labelling & customization
- No CAD experience needed, plus a three-month trial and one-on-one setup
Alphacam – Intelligent and Versatile CAD/CAM
Designed for woodworking, metal & stone – fully adaptable to diverse CNC nesting needs. For powerful automation.
Powerful automation: from toolpath generation to complex machining, Alphacam streamlines repetitive operations. Boost Productivity in 4 Easy Steps:
- Design & Nest: Alphacam delivers intelligent nesting and optimized toolpaths for your panel programs.
- Simulate: Screen-based previews reduce errors and ensure precise outcomes.
- Transfer: Send production-ready programs directly to HOLZ‑HER’s OSAI controller.
- Machine: Load, label, and offload panels with precision — minimal operator intervention, maximum consistency.
- Maximise efficiency: save material & time.
BOOK YOUR PERSONAL DEMO TODAY
Experience HOLZ-HER precision live. Let our experts show you how the Panel Center line transforms your production.
